HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method

Name: HD60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method
Brand: Haida
Price: 1 USD

Quality HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method for sale

Brand Name : Haida

Model Number : 60086-HD

Certification : CE,,ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Usage : Quality Control and Testing

Ozone Produced Mode : Ozone generator or UV absorption method

Test Mode A : Room temperature

Dispaly : Digital

Test Speed : Adjustable

Product : rubber testing equipment

Screw Speed : 0~150 r.p.m

Frenquency Range : 0 . 5-600HZ

Outside Dimension : 280×290×450 mm

Control Method : Computer automatic test

Optical Magnification : 100 times

Constant Temperature : 50℃± 0.5℃ and 100℃± 0.5℃

Temperature Rang : normal temperature~200℃

Electric Heating Power : AC220V±10%50HzAC220V±10%50Hz

Testing Standards : ASTM, ISO, GB, JIS, etc.

Cylinder : Diameter 9.5504±0.0076mm

Probe Diameter A : 7.5 mm

Injection Capacity : 40*65 cm³

Air Supply : 0.6MPa

Specification : 20-88HRA, 20-100HRB, 20-70HRC

Contact Now

HD-60086

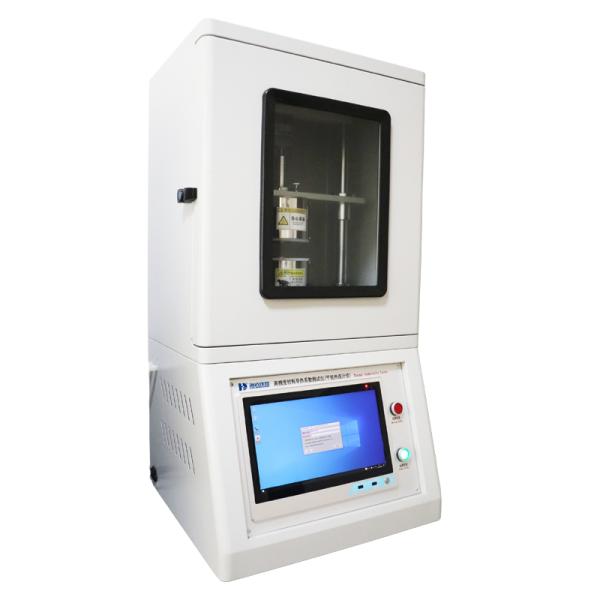

Thermal Conductivity Tester (Flat Plate Thermofluidometer Method)

Thermal Conductivity Tester adopts the internationally popular method of heat flow meter to detect thermal conductivity and thermal resistance, with computer to realize fully automatic detection and generation of experimental report. The instrument adopts to add stable hot surface temperature on one side of the specimen, the heat is transferred to the cold surface through the specimen, and the transferred heat flow is measured to calculate the thermal conductivity and thermal resistance. Adopting imported sensors and computer technology, it is characterized by good measurement accuracy, high reliability and good repeatability. Especially suitable for low thermal conductivity measurement (accurate to 0.1mw). It can be used for testing plastics, rubber, thermal insulation materials, aerogel panels, vacuum glass, etc. It is widely used in colleges and universities, scientific research institutes, quality inspection, factories and mines.

HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method

Technical Paramet

Item	Parameters
Thermal conductivity range	0.0001 ~ 1W / m-k, can be measured accurately to 0.1mw / m-k 0.001 ~ 300W / m-k. computer automatically switch range
Measuring accuracy	1%
Specimen size	5050 ~ 150150, 150150 ~ 300300(mm) optional (standard configuration), the thickness is not greater than 50mm.
Sample state	Can test solid material, powder material
Measuring time	15~20 min
Hot surface temperature range	RT~ 99.9 ºC (standard configuration), RT ~ 299.9 ºC, RT ~ 499.9 ºC optional
Hot surface temperature control	Plate heater, bi-directional SCR control, temperature control accuracy 0.1ºC
Cold surface temperature range	0 ~ 99.9 ºC (standard configuration), -10 ~ 99.9 ºC, according to user requirements to determine the lower temperature
Cold surface temperature control	Water-cooled to ensure the stability of the cold surface temperature (precision thermostatic water tank, temperature adjustable), temperature control accuracy of 0.1 ºC
Specimen clamping pressure range	0 ~ 1000N, resolution 0.1N
Sample thickness range	Measure automatically, 0 ~ 50mm, resolution 1um
Heat flow meter	Imported original heat flow meter
Data storage	Computerized automatic testing and storage printing and storage of experimental data
Machine dimension	(LWH)5504501500mm
Machine weight	Approx. 100KG
Water bath dimension	(LWH)300350530mm
Water bath weight	Approx. 35KG
Power	1∮ AC 220V 1KW
Standards	GB/T10295-2008, ASTM E1530, ASTM C518-04, ISO 8301, DIN EN 12664

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method

HD-60086 Thermal Conductivity Tester Flat Plate Thermofluidometer Method

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
